Access Control and Gate Operator Upgrade at Georgia State University Primate Center

Power Access Control Upgrading gate automation for reliability, safety, and long-term performance in Atlanta, GA

Installation of a high-traffic slide gate operator and full system upgrade to improve reliability, safety, and long-term performance. This access control installation at Georgia State University’s Primate Center in Atlanta, GA included new operator hardware, advanced vehicle detection technology, and safety system integration to bring the site up to modern standards.

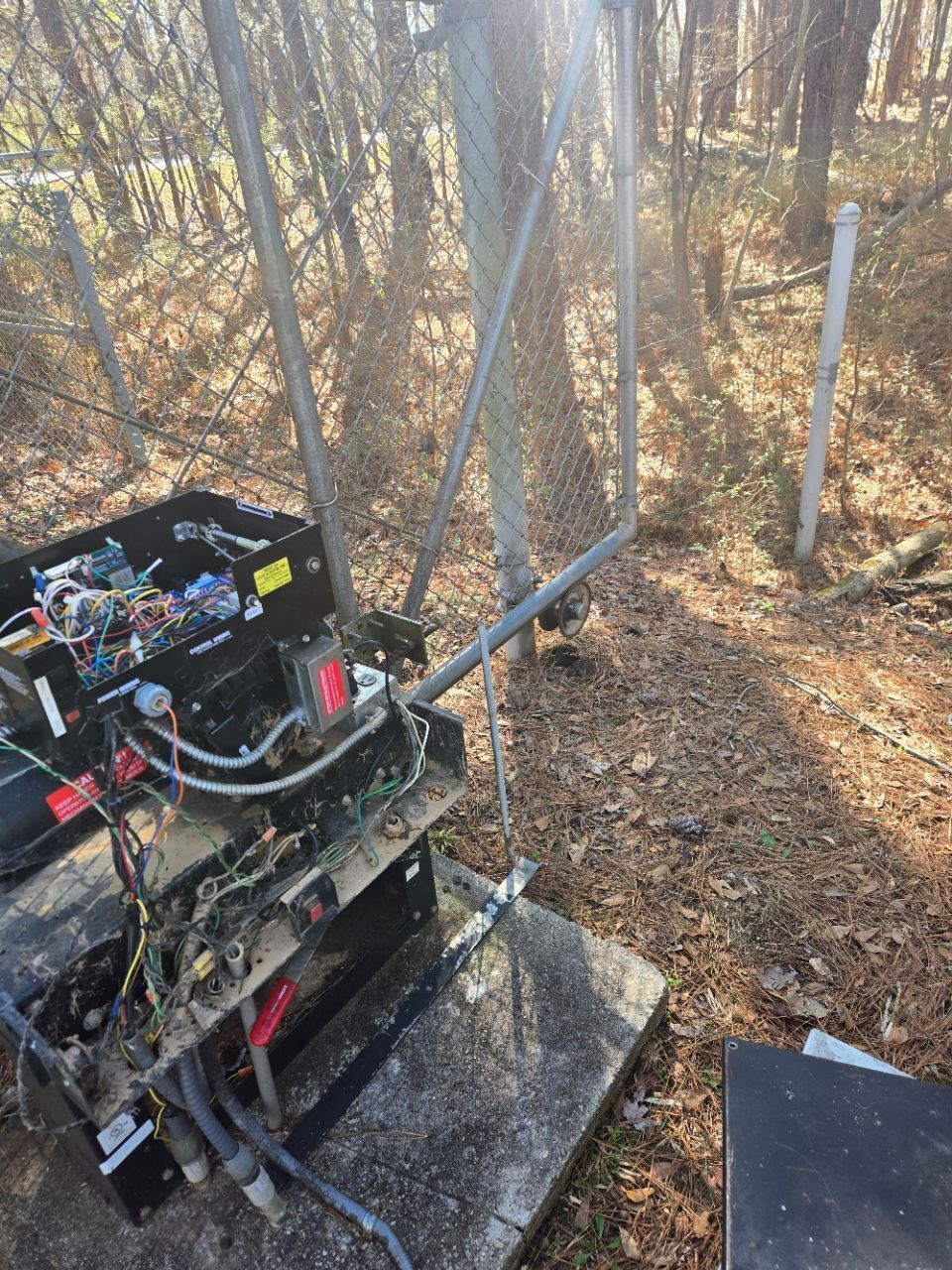

This project centered around our team upgrading the primary gate operator and supporting infrastructure for a high-traffic environment. A LiftMaster CSL24UL slide gate operator was installed, designed to handle gates up to 50 feet and 1,500 pounds. This heavy-duty commercial access control system features a soft start and stop motor to reduce mechanical stress, along with an integrated battery backup to ensure continuous operation during power outages—an essential feature for facilities requiring consistent access control in Atlanta.

To ensure a stable and long-lasting installation, the operator was mounted on a dedicated steel plate, providing a secure, vibration-free foundation. Proper mounting is critical in any access control installation, especially in high-use environments like university facilities, where system reliability directly impacts daily operations. Power Access Control works across many industries including education access control!

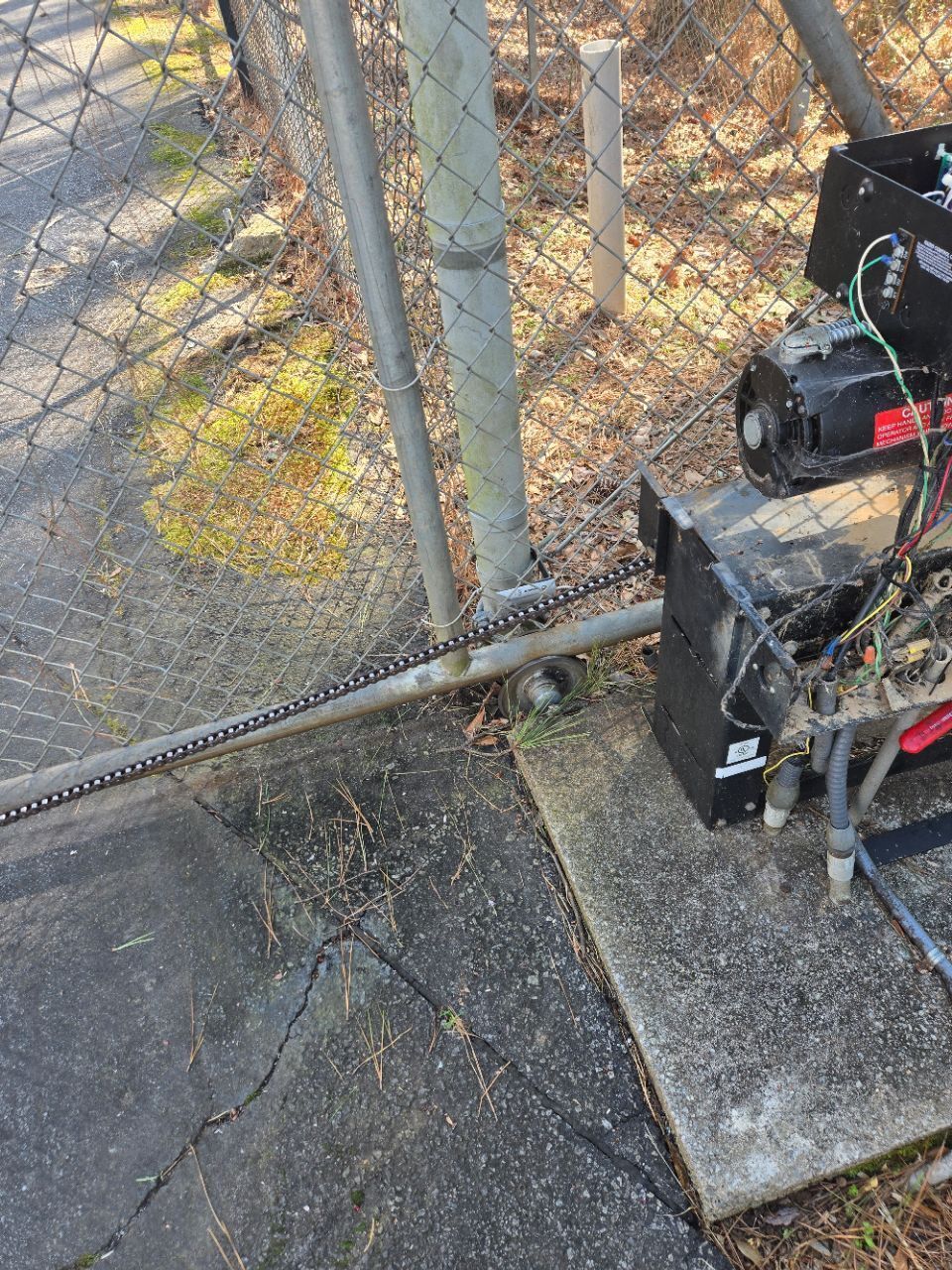

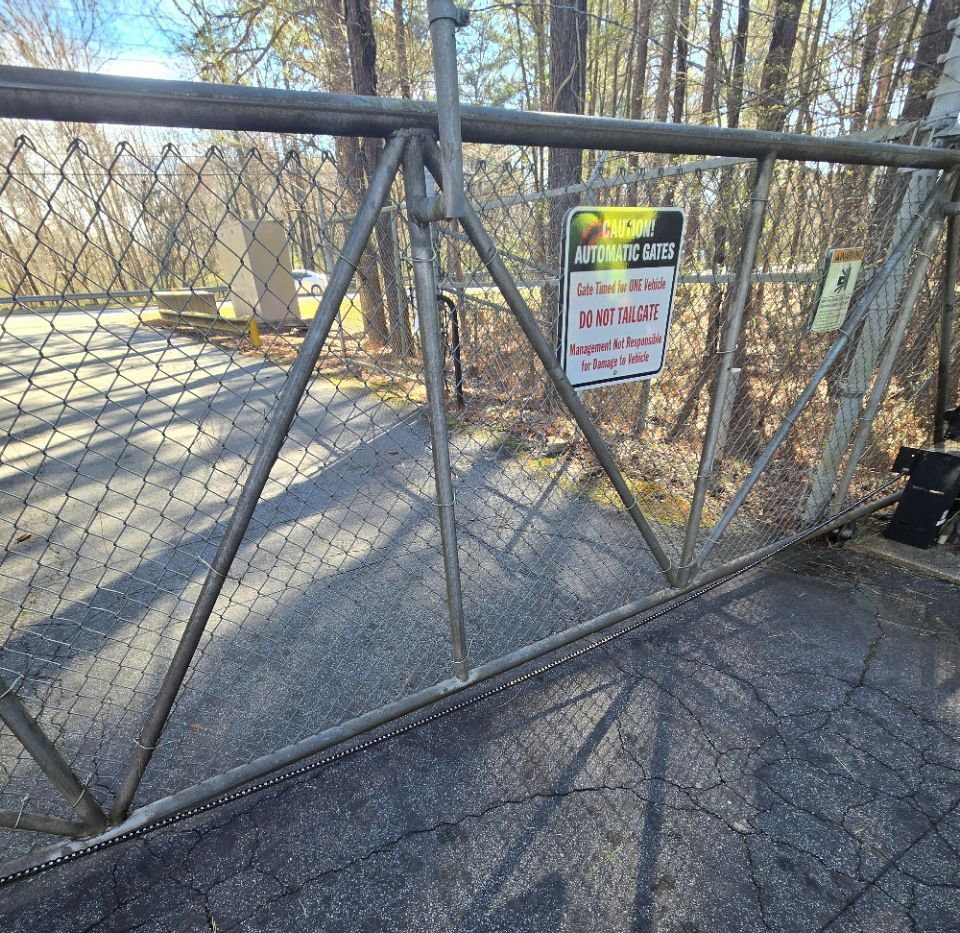

Specialized hardware upgrades were also implemented to improve gate performance. Existing rollers were replaced with 4-inch nylon cantilever wheels, significantly reducing friction and wear compared to older metal components. A new #50 industrial-grade drive chain was installed to ensure smooth and consistent power transfer from the operator to the gate. These upgrades contribute to a more efficient and lower-maintenance access control system—key for commercial properties throughout Atlanta.

One of the most innovative aspects of this project was the implementation of a no-cut vehicle detection solution. Instead of traditional wired loop systems that require cutting into pavement, three AES yellow disc e-Loops were installed. These wireless, surface-mounted magnetic sensors detect vehicle presence without trenching or damaging the existing asphalt. This approach is ideal for preserving infrastructure while still delivering reliable performance in modern Atlanta access control systems.

To meet current safety standards and ensure full compliance, the system was upgraded with monitored safety devices in accordance with UL 325 and ASTM F2200 regulations. A monitored retro-reflective photo eye was installed to detect obstructions in the gate’s path, along with a 5-foot monitored safety edge that immediately reverses the gate upon contact. These features are critical for protecting both people and property in any commercial access control installation and our team specializes in this!

In addition to improved functionaliity, this upgrade installed by Power Access Control and our team provides:

Full compliance with UL 325 and ASTM F2200 safety standards
Increased reliability with battery backup during power outages
Reduced maintenance through upgraded hardware and components
Preservation of existing pavement with wireless vehicle detection technology
Smoother, quieter gate operation with reduced mechanical strain

This project is a strong example of how a modern access control system upgrade in Atlanta, GA can improve safety, reliability, and long-term performance—especially in high-traffic environments like Georgia State University’s Primate Center.
